230 Volt AC Rack and Pinion actuator with a push/pull force of 650N. Traditional and unbeatable rack and pinion actuator. Especially applicable on windows, skylights and roof windows in an industrial area. Can be used for daily ventilation. Because of the externally mounted drive unit, the actuator has a very large stroke in relation to the total actuator length. (The max. stroke is only 40mm. shorter than the length of housing).

Material: Aluminum housing, anodized EV1/E6. Housing drive unit is plastic.

Comes complete with mounting brackets.

When used on wide (roof-)windows you can use a "actuatorless" slave unit for extra stability and better sealing. This mechanical unit must be connected with this actuator through a connecting rod.

Field of applicationNatural Ventilation
Window/Sash typeRooflights | Top hung
Electric features
Voltage230V AC
Current Nominal (A.)0.22
Cable4x 0.75 mm2 / L= 1.5 mtr.
Cable connectionFixed cable
Switch on durationS2 20%
Mechanical features
Stroke (mm.)350 | 550 | 750 | 1000
Push force (N.)650
Pull force (N.)650
Speed (mm/sec.)9.0
Sound level (1 mtr. distance)< 75 dB
Temperature Range-10 °C to +60 °C
Dimensions and Weights

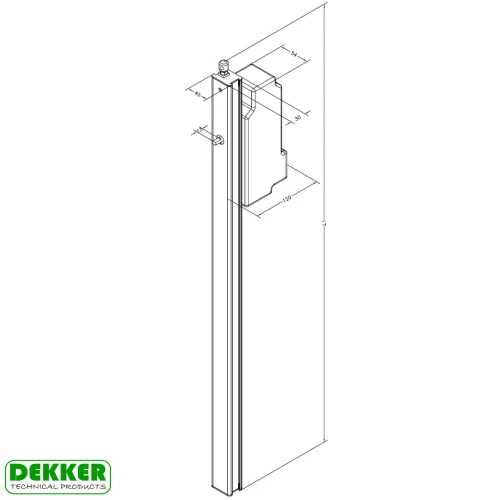

Dimension (L x W x H)(Stroke+40)x40x30 mm.
Certifications / Tests
Certifications & DeclarationsEN 12101-2
Limit stopElectronic | Integrated
Overload cutt-offElectronic (load dependent) | Integrated
Protection ClassIP55
MaterialHousing: Aluminium EV1 / Drive-unit: Plastic
