SHEV EMERGENCY SWITCH HE081
SHEV EMERGENCY SWITCH HE081
- Availability: In Stock
- Product code: HE081
- Weight: 0.20kg
- Ordering Unit: st./pc.
- Productcode manufacturer: A3-214x
Starting From € 73.00
Available Options
Temporary Material surcharge
Due to the extreme price increases on the raw materials market, Simon-PROtec has decided to charge a (temporary) material surcharge of 3.5% on their products. This surcharge is added in the checkout process and will be stated seperately on the invoice.
Tags:
he081
, triggering
, shev
, emergency
, switch
, units
, simon
, protec
, 214x
, SHEV
, EMERGENCY
, SWITCH
, HE081
, Triggering
, SHETriggeringunits

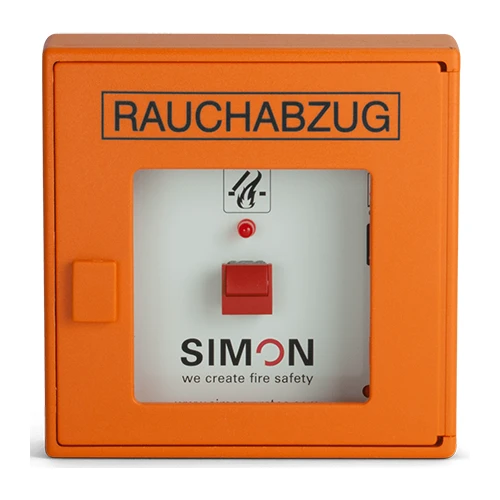

The SHEV emergency button type HE081 is used as a main or secondary SHEV-button (in accordance with DIN 18232/2 and LBO) in smoke and heat extraction systems (SHEV). In case of fire, HE081 is triggered manually and activates the SHEV system.

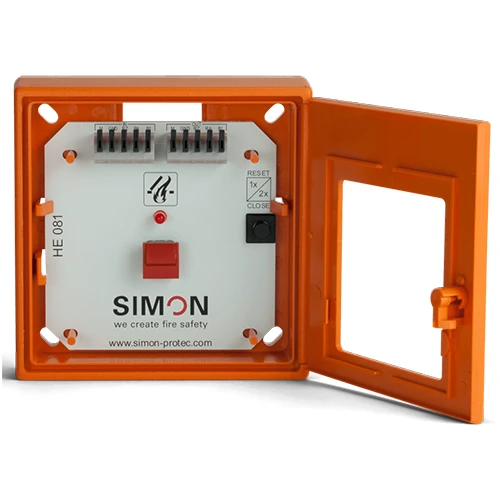

The HE081 is equipped with 1 indicator LED: Red = Triggering (SHEV ON)
With the rest-button, the SHEV-control board can be reset to its initial position.
Comes standard in orange (RAL2011, in accordance with VdS2592), with separate multilingual text stickers. On request the HE081 is also available in ither colors.
| Electric features | |
| Voltage supply | 24V DC |
| Mechanical features | |
| Temperature Range | -5 °C to +75 °C |
| Safety/Protection | |
| Protection Class | IP40 |
| Material/Finishing/Color | |
| Housing material | Plastic |
| Color | RAL2011 (Acc. VdS 2592) | RAL1004 | RAL5009 | RAL7035 |
